HORIPAD FPS PLUS (PS3/PS4) PCB PIN-OUT

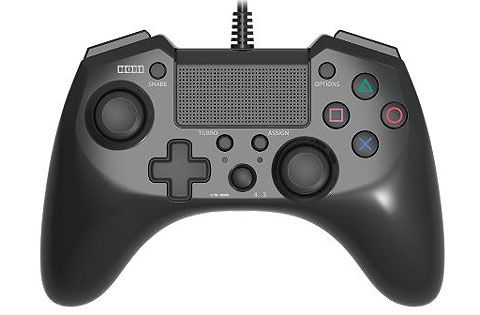

HORIPAD FPS PLUS PS3 PS4 controller

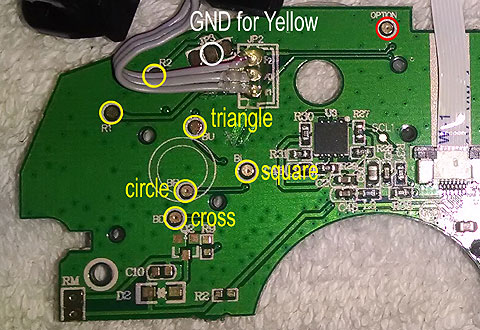

HORIPAD FPS PLUS PS3 PS4 controller PCB pinout guide for the shapes side.

HORIPAD FPS PLUS PS3 PS4 controller - PCB pinout guide.

The HORIPAD FPS Plus controller (found via Ben Heck) is a very easy to adapt controller for PS3 and PS4. Using an appropriate adapter, it should be easy to get working on other machines too. The following advice should help with switch adaptations and this guide should help with lightening the thumb-sticks. For information, this is a wired only controller with no rumble-motors.

JP3 = GROUND/Common for the following:

BD(OWN) = CROSS / A / 1
BR(IGHT) = CIRCLE / B / 2
BL(EFT) = SQUARE / X / 3
BU(P) = TRIANGLE / Y / 4
R1 / RB
R2 / RT
L1 / LB
L2 / LT


GND (BOTTOM RIGHT) for the remainder:

OPTION / START / MENU
SHARE / SELECT / BACK / VIEW
L3 / LS
R3 / RS
TAR = (REAR TARGET BUTTON)
TAPD = TOUCH-PAD


HORIPAD FPS PLUS PS3 PS4 controller - PCB pinout guide. Click for large image.
